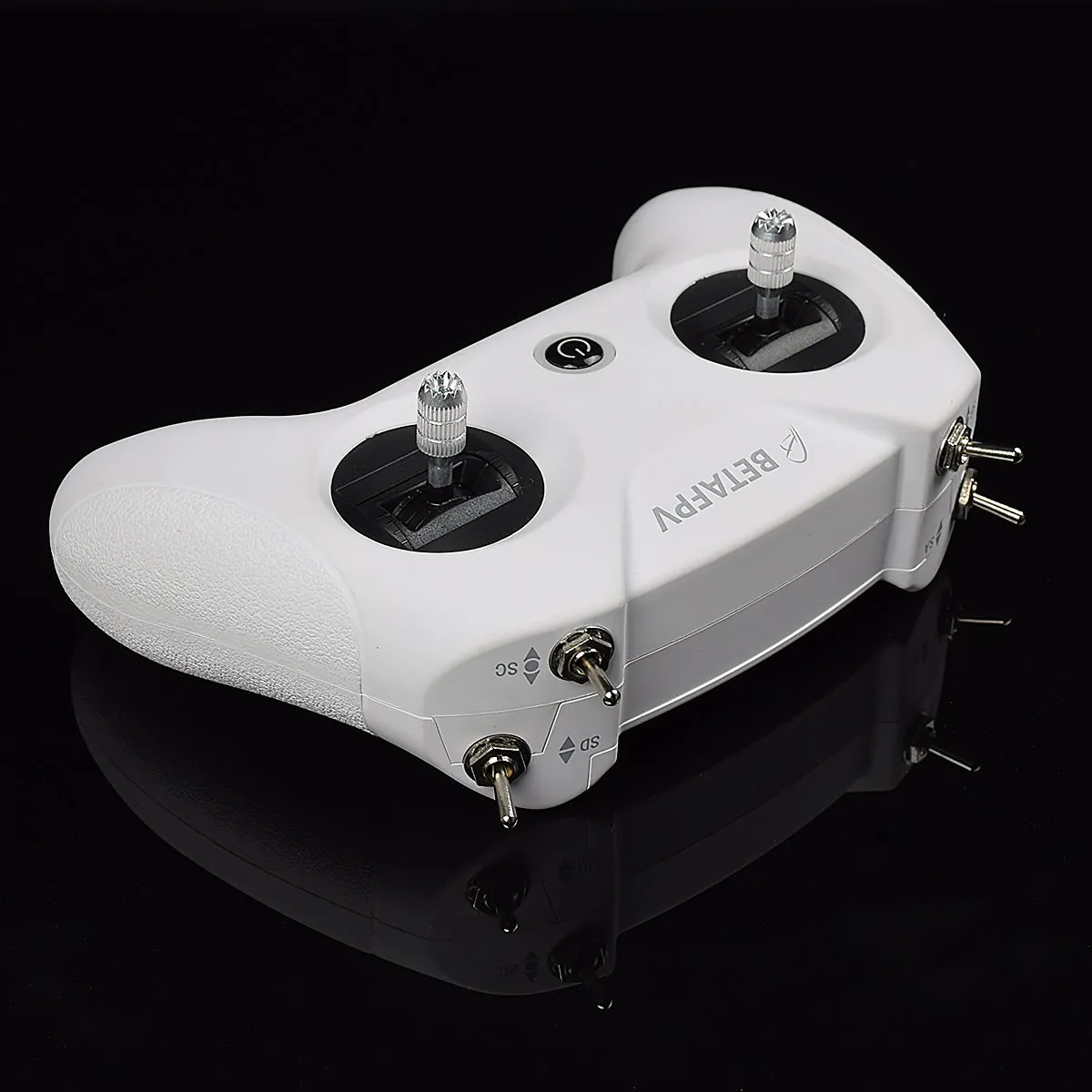

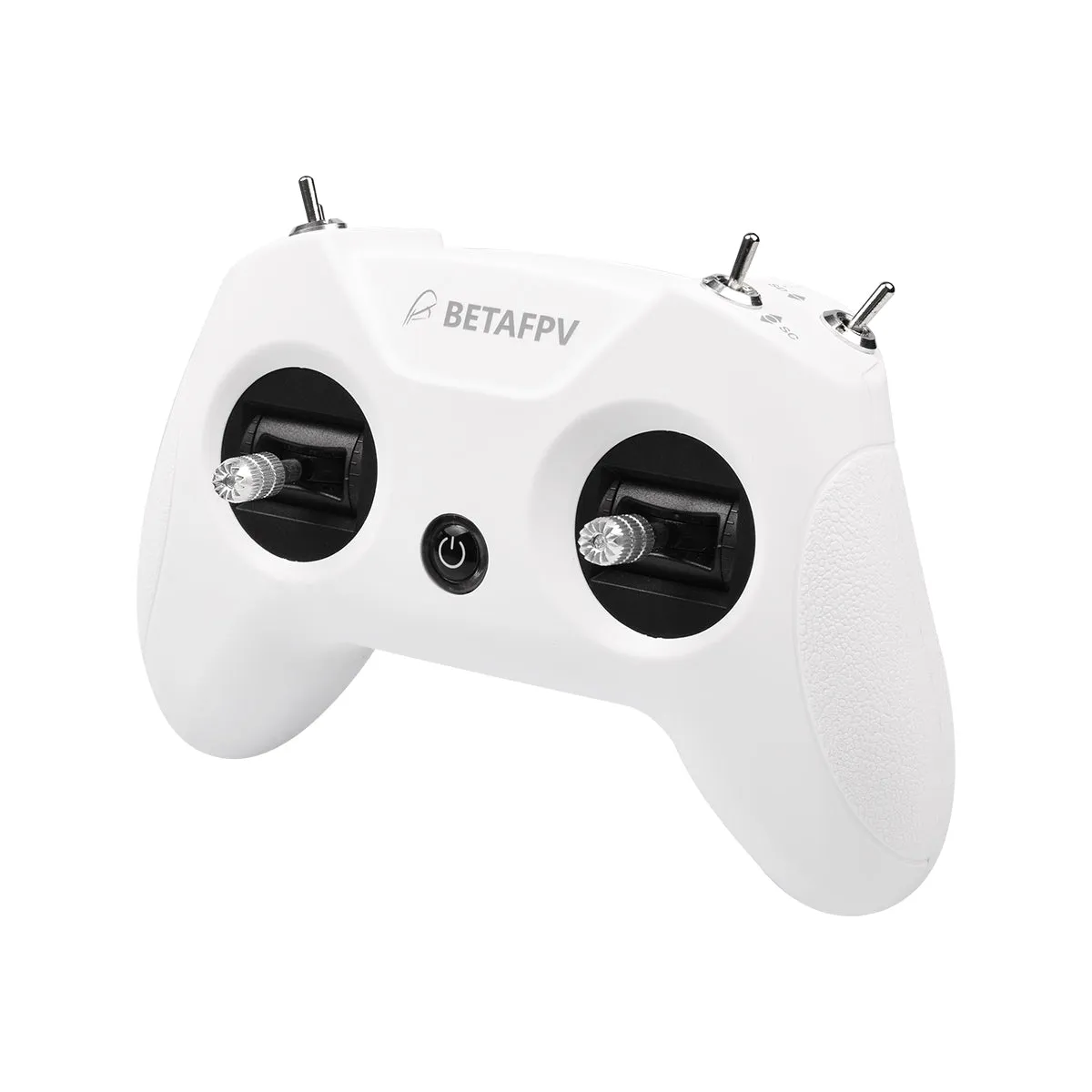

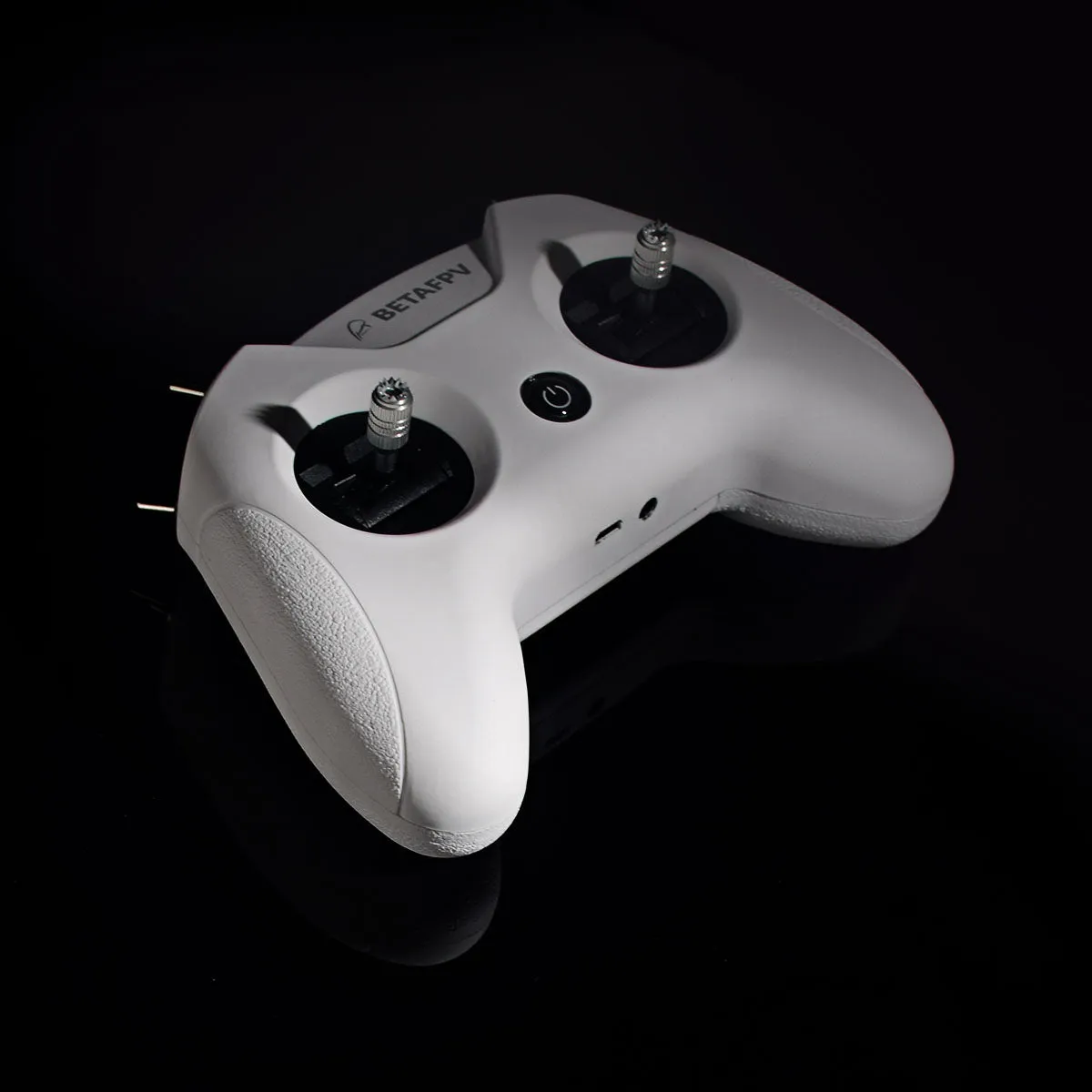

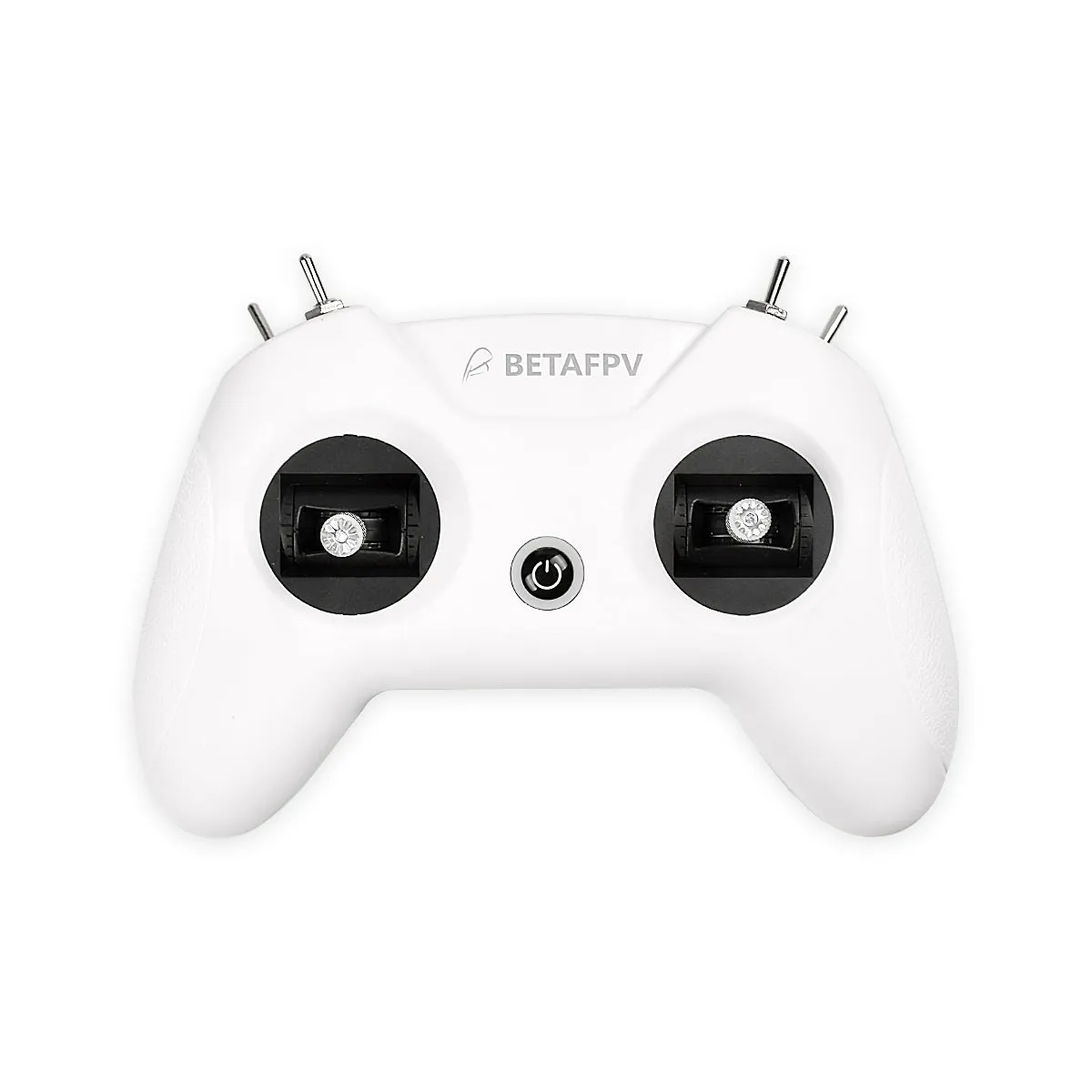

After the latest round of beta tests, LiteRadio 2 is back to the market with huge improvements based on the original version.
- Supports Frsky protocol, easily change Frsky D8, Frsky D16 FCC and Frsky D16 LBT mode (The default version is Frsky D16 FCC)
- Built-in charging module, support USB charging
- Adopted the rubber coat and add weight, makes it more ergonomic
- Add vibration motor, provide a vibrating prompt

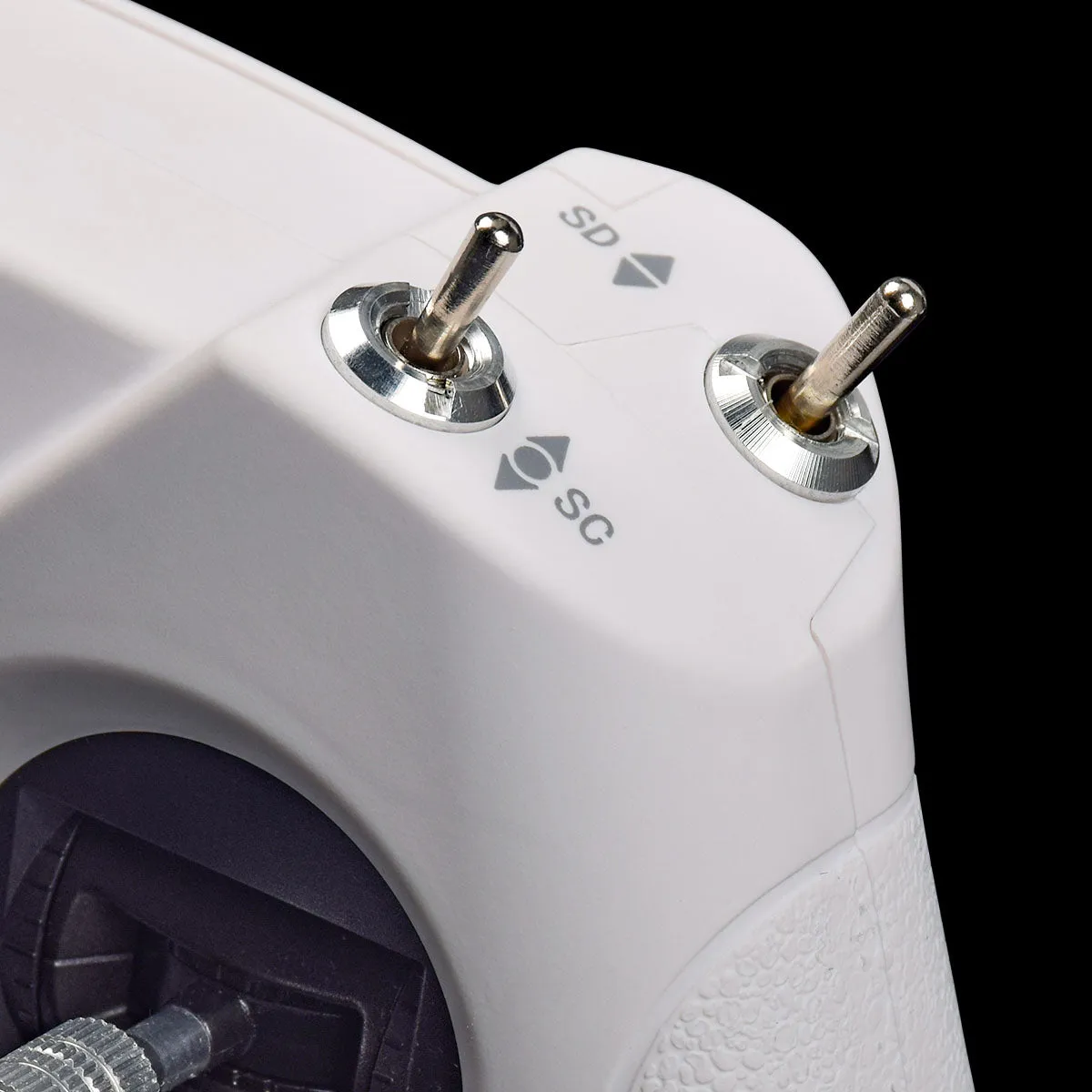

- Redesign the power button, make it crystal clear and better for the LED indication
Special thanks for the review of , it is a great help for fans to make the right value choices.
Bullet Point
- Designed for FPV racing starters, and supports Bayang protocol and Frsky protocol (D16/ D8)
- LiteRadio 2 is powered by OpenTX firmware. Totally 8 channels and has a hobby-grade gimbal.
- This radio transmitter acts as a USB Joystick when connected to a personal computer. So you could use it to play FPV simulator like EREADRONE
- The trainer function is available for this LiteRadio 2 transmitter. It is useful for FPV racing student in training
- LiteRadio 2 transmitter runs the OpenTX 2.2.4 firmware. OpenTX comes with a computer-based graphical user interface, OpenTX Companion. Pilots could use OpenTX Companion is trim the gimbal central value
- With the hobby-grade gimbal and adopted the rubber coat, makes it more ergonomic
Specification
- Item: LiteRadio 2
- Frequency Range: 2.4G (2403MHz-2447MHz)
- 2.4G System: NRF24L01 or CC2500
- Channel: 8
- System: Bayang Protocol / Frsky Protocol
- Power: ≤80mw
- Adapted Drone Type: Multirotor
- Support USB Charging
- Support FPV Simulator Connected
- Output: PPM, support Student Radio Mode
- LED Light: Green-Power On / Red-Warning / Blue-Normal
- Battery:
- Weight: 227.4g (with battery)
How to change the protocol (D16/D8 Version)
To change FrSky protocols (FCC D16, EU D16, or D8), you first have to power it off, then press and hold the bind button while you power it back on. Then it will flash the code to indicate which protocol it is on.
| LED Status | Protocol Version |
| Flash Once | Frsky D16 FCC |
| Flash Twice | Frsky D16 LBT |
| Flash Three Times | Frsky D8 |
LiteRadio 2 Guide
Watch the following video to learn about how to use your LiteRadio 2
LiteRadio 2 Advanced Modifications
Special thanks to who provided this foldable screen idea to help fans make their own monitor, it supports to add any module like R9M Lite Module or crossfire module. If you are interested, please check the link to know the specific steps to make your own .
Diagram of LiteRadio 2
Package
- 1 * LiteRadio 2 Radio Transmitter
- 1 * 350mAh 2S Battery
